MS 18310 24V= *
Artikelnummer:

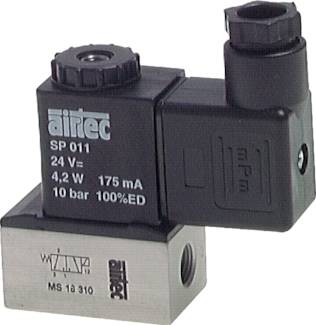

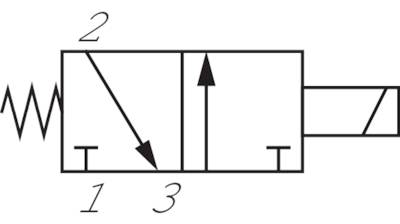

3/2-vägs solenoid ventil, G 1/8", stängd (NC), 24 V=
3/2-vägs solenoid ventil, G 1/8", stängd (NC), 24 V=
Beskrivning
| Control voltage | 24 V= |
| Thread | G 1/8" |
| Nominal width [mm] | 1,4 |
| flow [l/min] | 56 |
| Power consumption (Tightening) | 4.2 W |
| Note | RoHs-compliant |
| Weight | 140 g / pc. |
| Customs duty number: | 84812090 |
Description
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: NBR
Temperature range:
-10°C to max. +70°C
Working pressure:
-0.95 to 10 bar (MS 20 310: -0.95 to 8 bar)
Control voltage:
Standard: 24 V=, 230 V AC, many other voltages possible
Protection class:
IP 65, plug size 1 (MS 20 310: plug size 0)
Pressure input:
Connection 1
Information:
These valves are generally delivered with coils and plugs!
*available with ATEX approval, EX II 2GD c T5 T100°C, T Medium/Tamb: -10°C to +50°C max., see the operating instructions for full details
1)only available in 12 and 24 V DC, 2)available with ATEX approval, EX II 2GD c T5 T100°C, T Medium/Tamb: -10? to max. +50°C, see the operating instructions for full details
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
